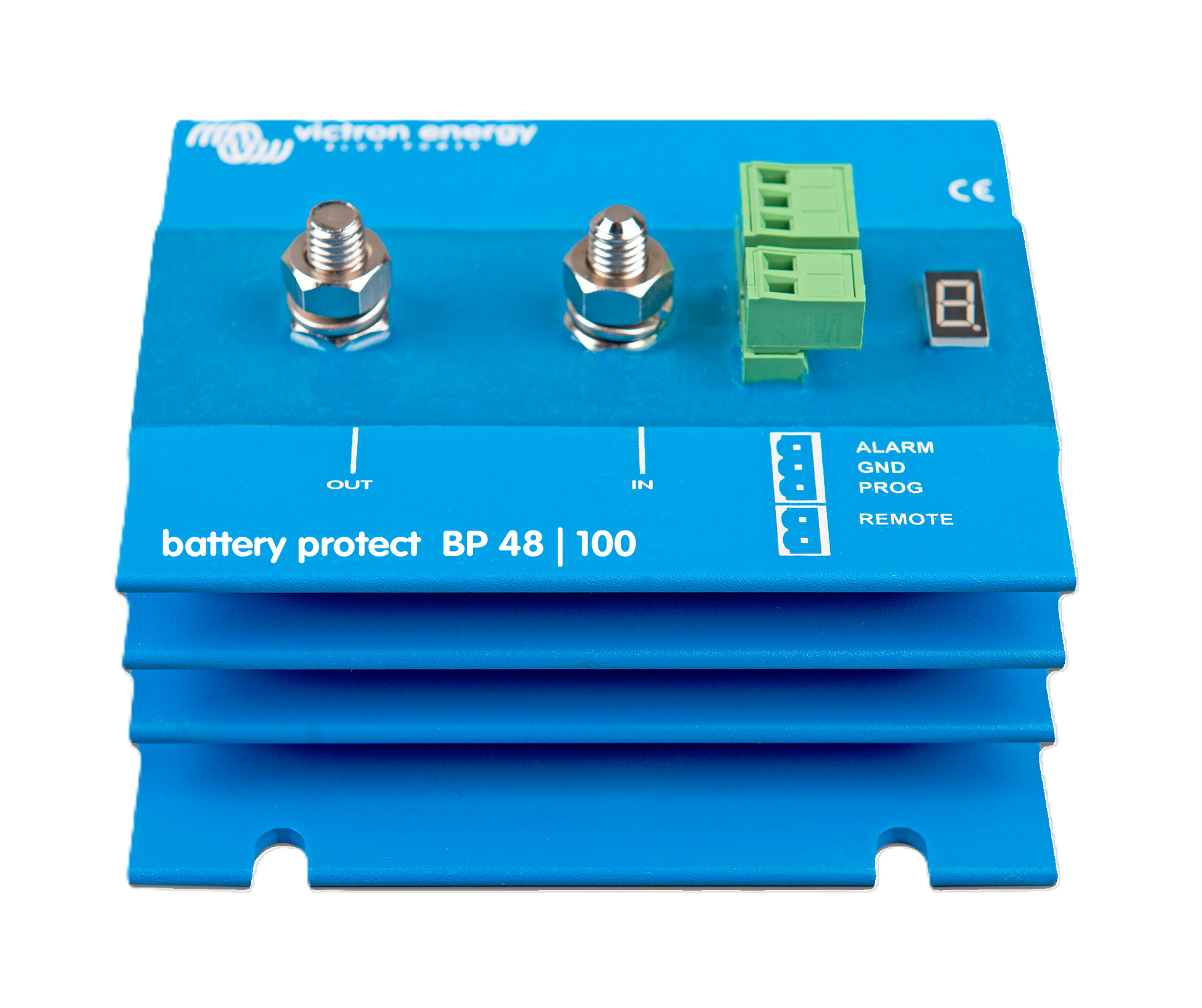

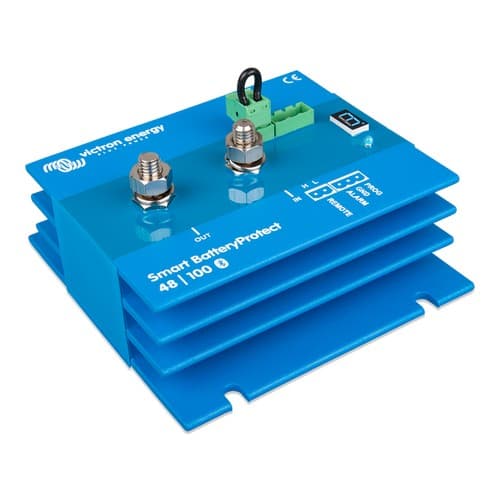

Victron BatteryProtect 48V-100A

Protect your power system with smart precision.
The Victron Smart BatteryProtect 48V-100A automatically disconnects your battery from non-essential loads before it becomes overly discharged—or when there's not enough power left to start your engine. Designed for 48V systems and packed with Bluetooth connectivity, this unit is ideal for off-grid solar, marine, telecom, and industrial energy systems.

Easily configure trip thresholds and reconnect points using the VictronConnect App, or use manual programming via the built-in display. With a peak current rating of 250A and IP67-rated electronics, this rugged, reliable device ensures your battery is never pushed past its limits.

Key Features:

• Automatic Load Disconnect – Prevents over-discharge and battery damage

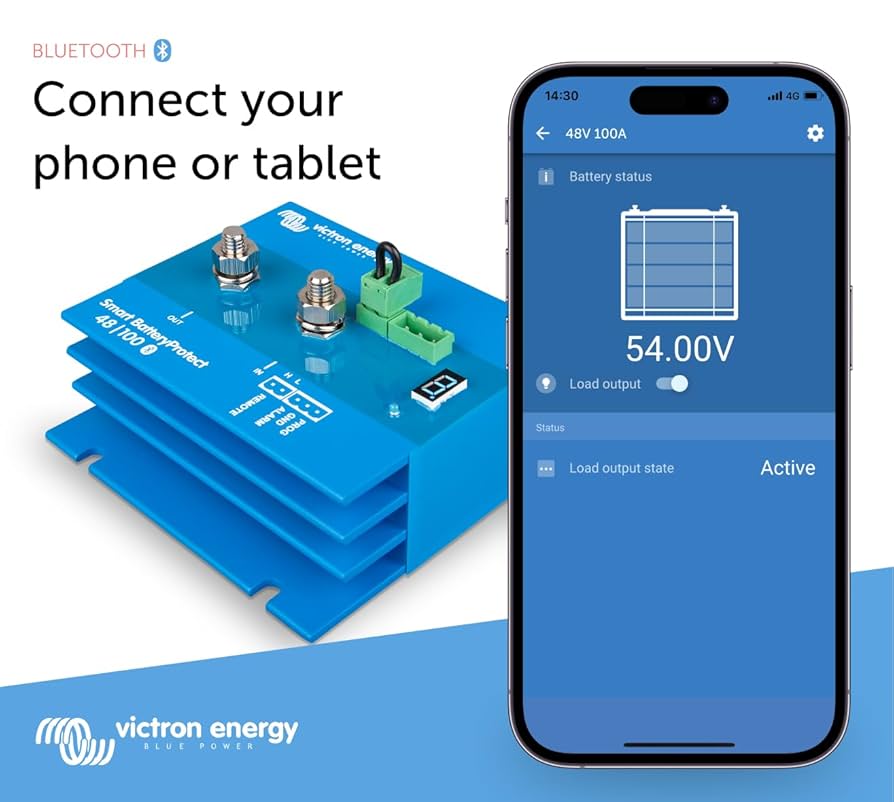

• Bluetooth-Enabled – Configure settings and monitor performance via VictronConnect

• Programmable Voltage Thresholds – Fully customizable engage/disengage points

• Alarm Output – Sends a warning signal before disconnecting the load

• Multiple Modes – Use with lead-acid or lithium systems (with or without external BMS)

• Solid-State Reliability – MOSFET-based design with no relay contacts

• Wide Operating Range – Works from 24V up to 70V systems

• Low Power Consumption – <2mA draw, even when active

Specifications:

• System Voltage: 48V nominal (range: 24–70V)

• Continuous Current: 100A

• Peak Current: 250A

• Power Consumption: ~1.9mA (on), ~1.7mA (off)

• Alarm Output: 12s delay before load disconnect

• Reconnect Delay: 30s

• IP Rating: Electronics – IP67 | Terminals – IP00

• Dimensions: 123 × 62 × 120 mm

• Weight: ~0.8 kg

Ideal For:

• Off-grid solar installations

• Lithium or AGM battery banks

• Marine and mobile energy systems

• Telecom and industrial backup power setups

What’s in the Box:

• 1 × Victron Smart BatteryProtect 48V-100A

• Mounting hardware

• Quick-start guide
