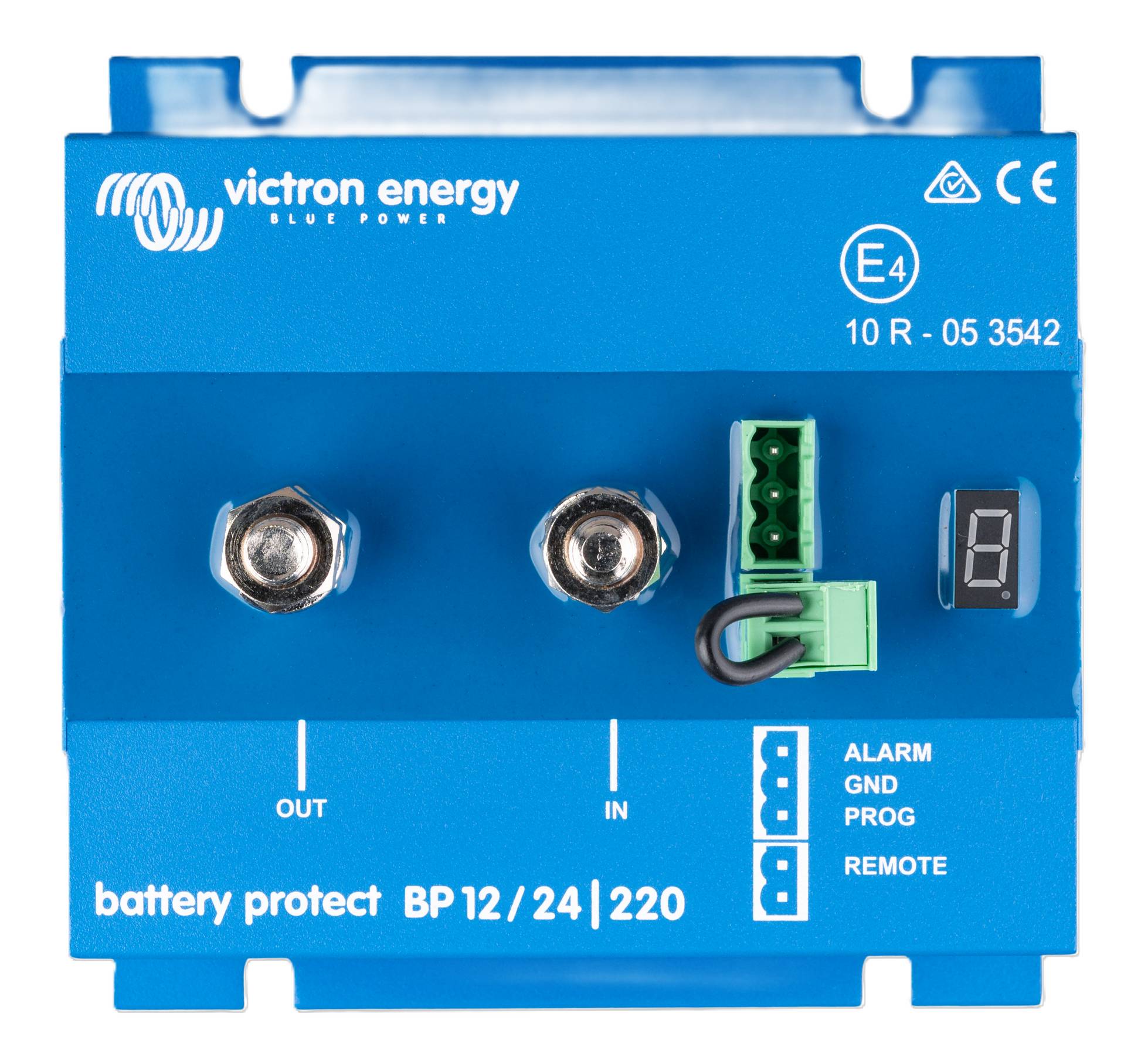

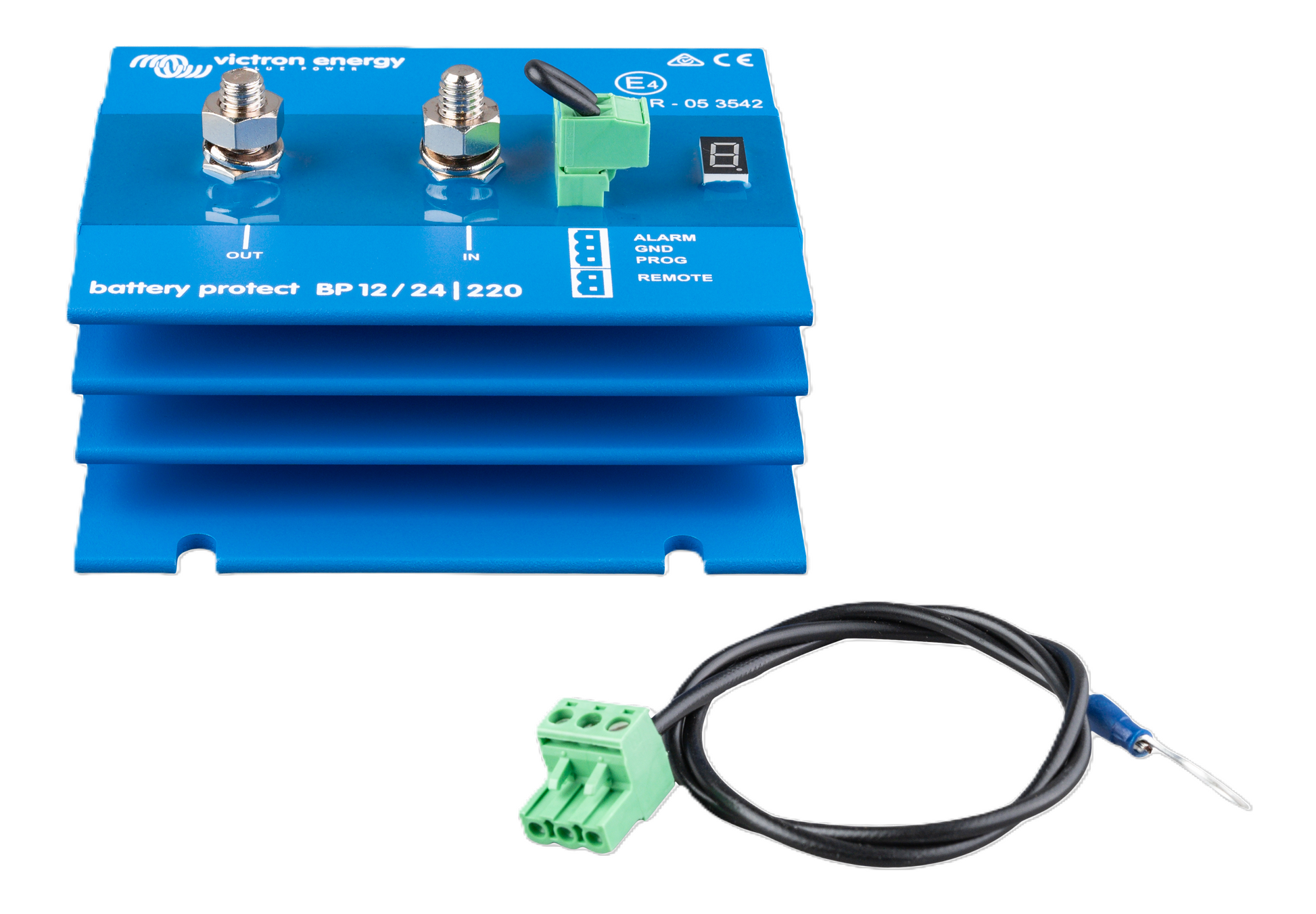

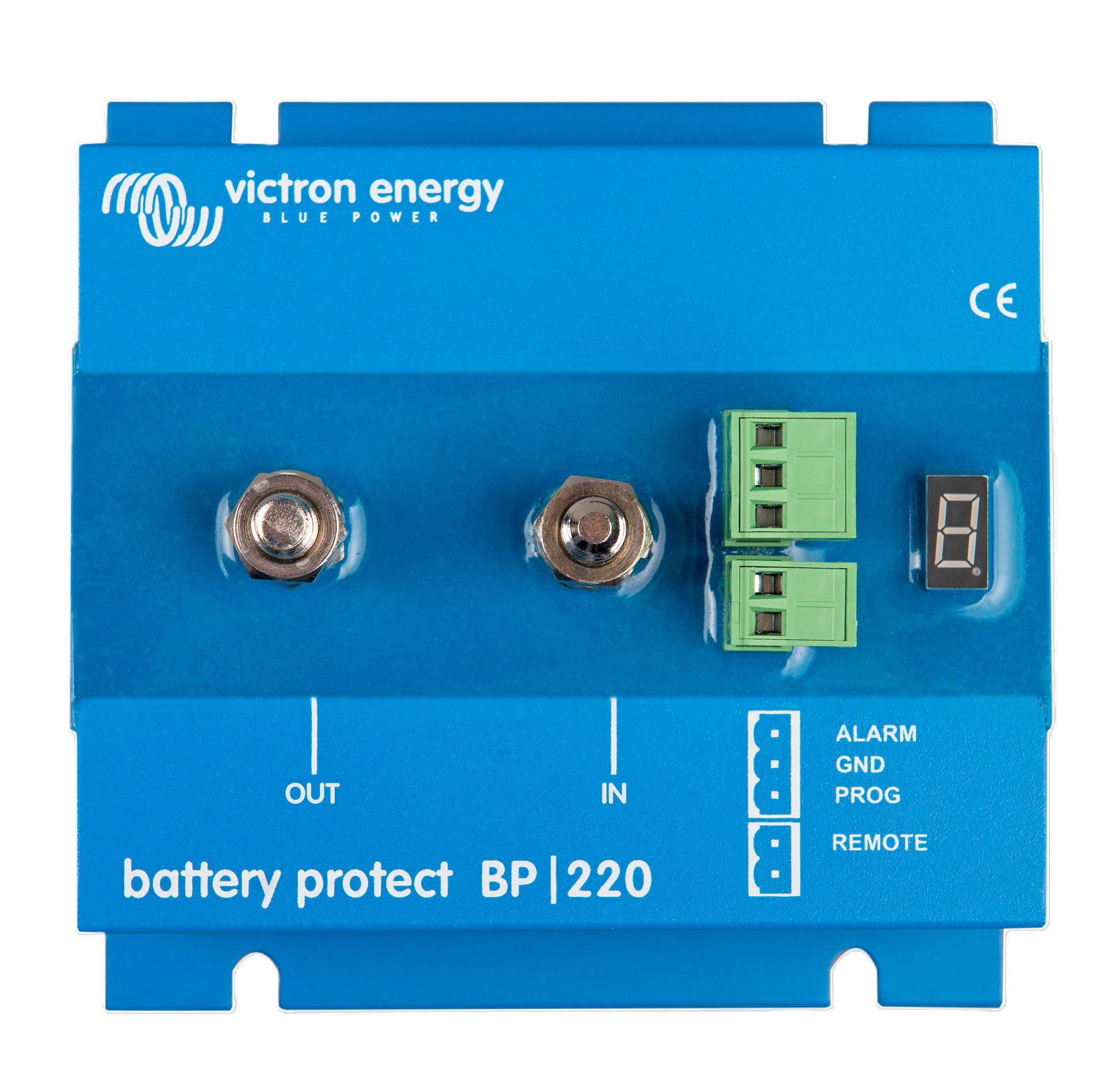

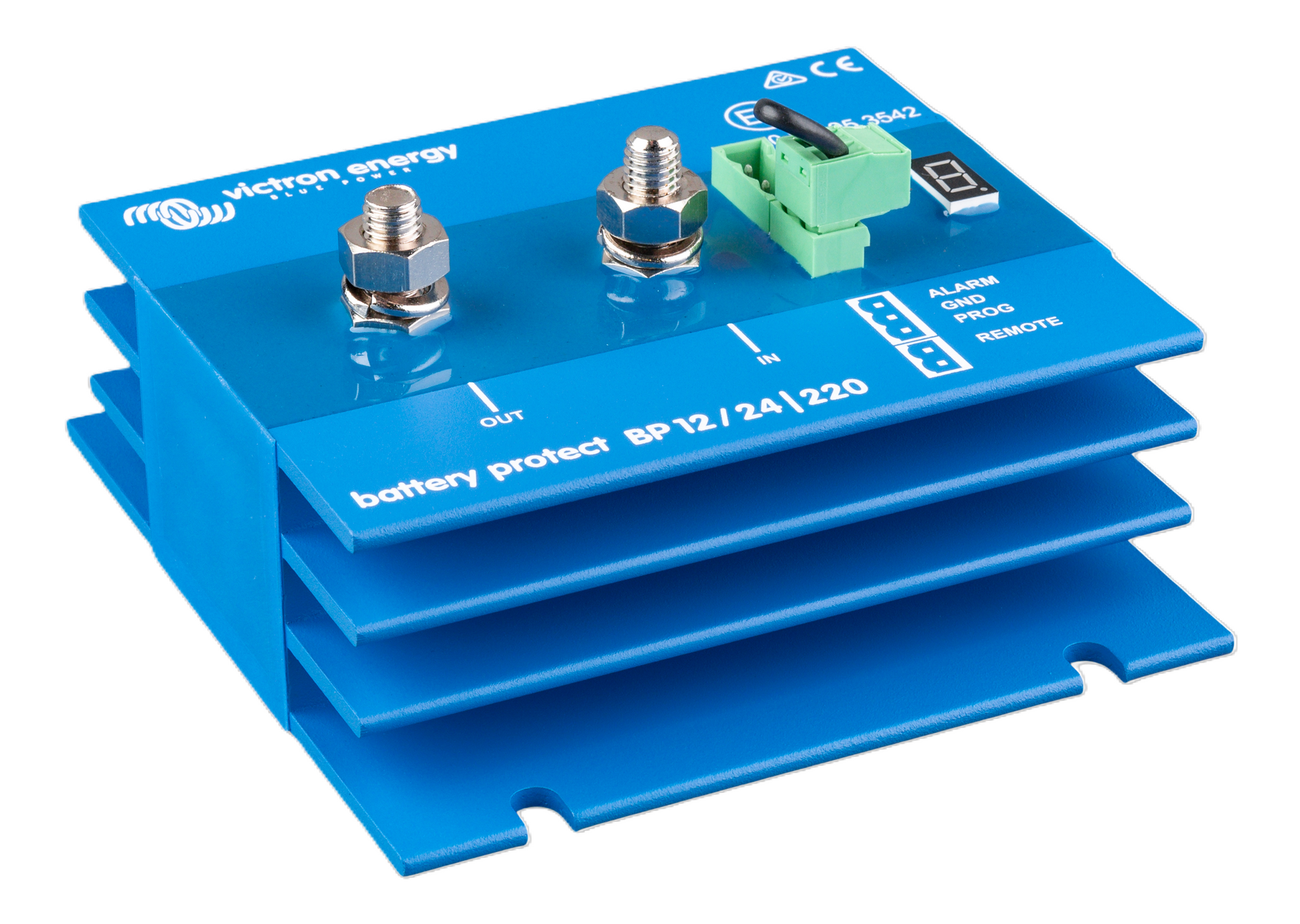

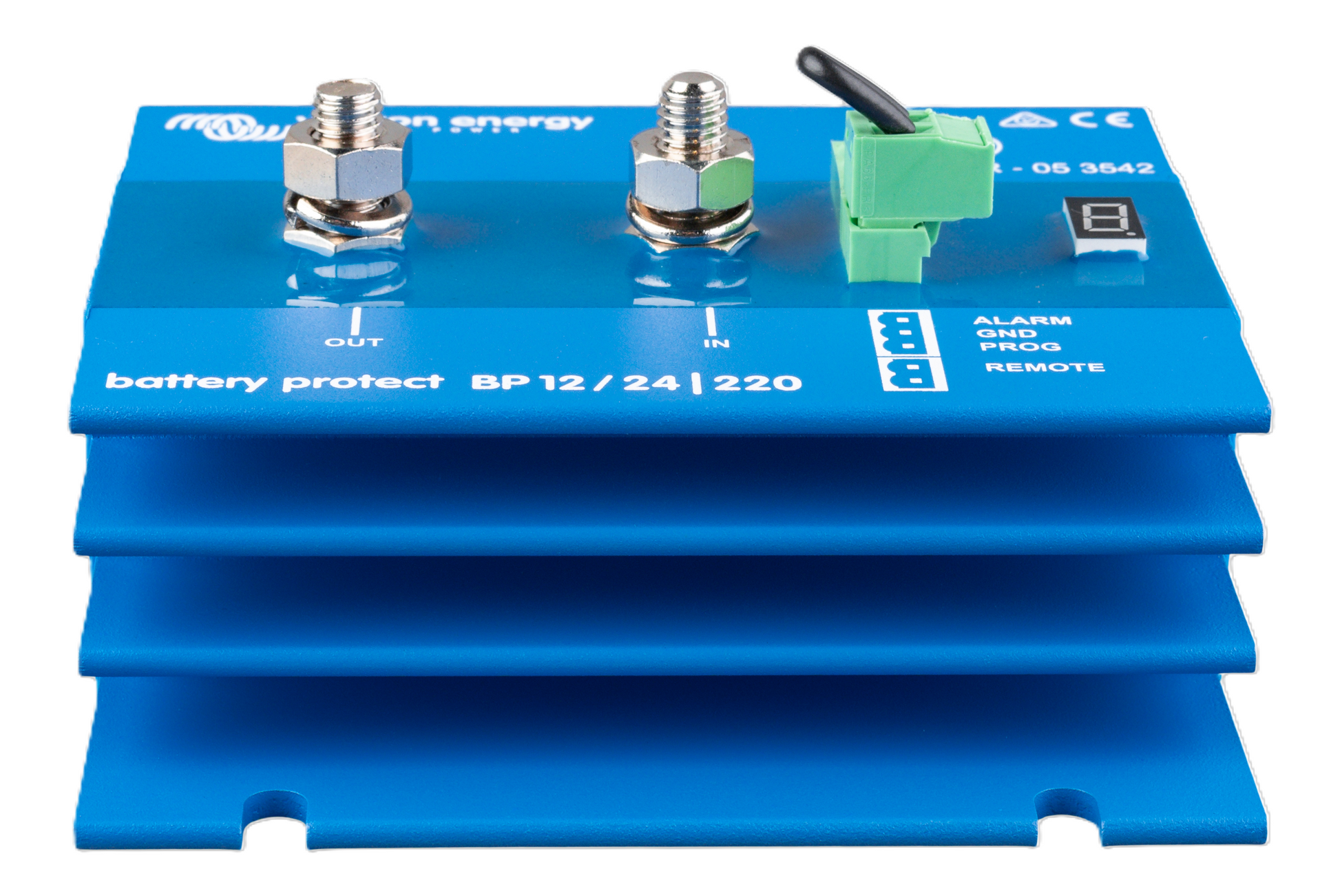

Victron BatteryProtect 12/24V-220A

Protect your batteries and extend their lifespan with the Victron Smart BatteryProtect 12/24V-220A.
This intelligent load disconnect device safeguards your system by automatically disconnecting non-essential loads before your battery is too deeply discharged. Designed for 12V and 24V systems, it’s perfect for high-current DC applications in marine, RV, solar, and off-grid setups.

🔧 Key Features:

• Auto Voltage Detection – Automatically detects 12V or 24V systems

• High Current Capacity – Handles up to 220A continuous current (600A peak for 30 seconds)

• Bluetooth Smart Control – Easily program disconnect/reconnect thresholds via the VictronConnect app

• User-Defined Protection Settings – Fully adjustable voltage limits to suit any battery type, including Lithium

• Ultra-Low Power Draw – Consumes just 1.2–1.4mA in standby mode

• Remote Control Functionality – Allows integration with ignition switches or BMS systems

• Solid-State Switching – No sparks, reliable MOSFET-based protection

• Rugged & Waterproof – Electronics sealed for harsh environments (IP67-rated)

Ideal For:

• Lithium or lead-acid battery banks

• Solar power systems

• RVs, 4x4s, boats, and campervans

• Off-grid and backup power setups

• Protecting sensitive electronics and preserving battery life

⚠️ Note:
This is a uni-directional device. Current must flow from the battery to the load (not from charger to battery). Not recommended for placing directly between battery and inverter — instead, control the inverter’s remote on/off with this unit.

Specifications:

• Operating voltage: 6–35V DC

• Continuous current: 220A

• Peak current: 600A (30s)

• Standby current: 1.2–1.4mA

• Connection terminals: M8

• Dimensions: 62 x 123 x 120 mm

• Weight: ~0.8 kg

• Bluetooth-enabled: Yes (via VictronConnect)

What’s in the box:

• Victron Smart BatteryProtect 12/24V-220A

• User manual

• Mounting hardware
