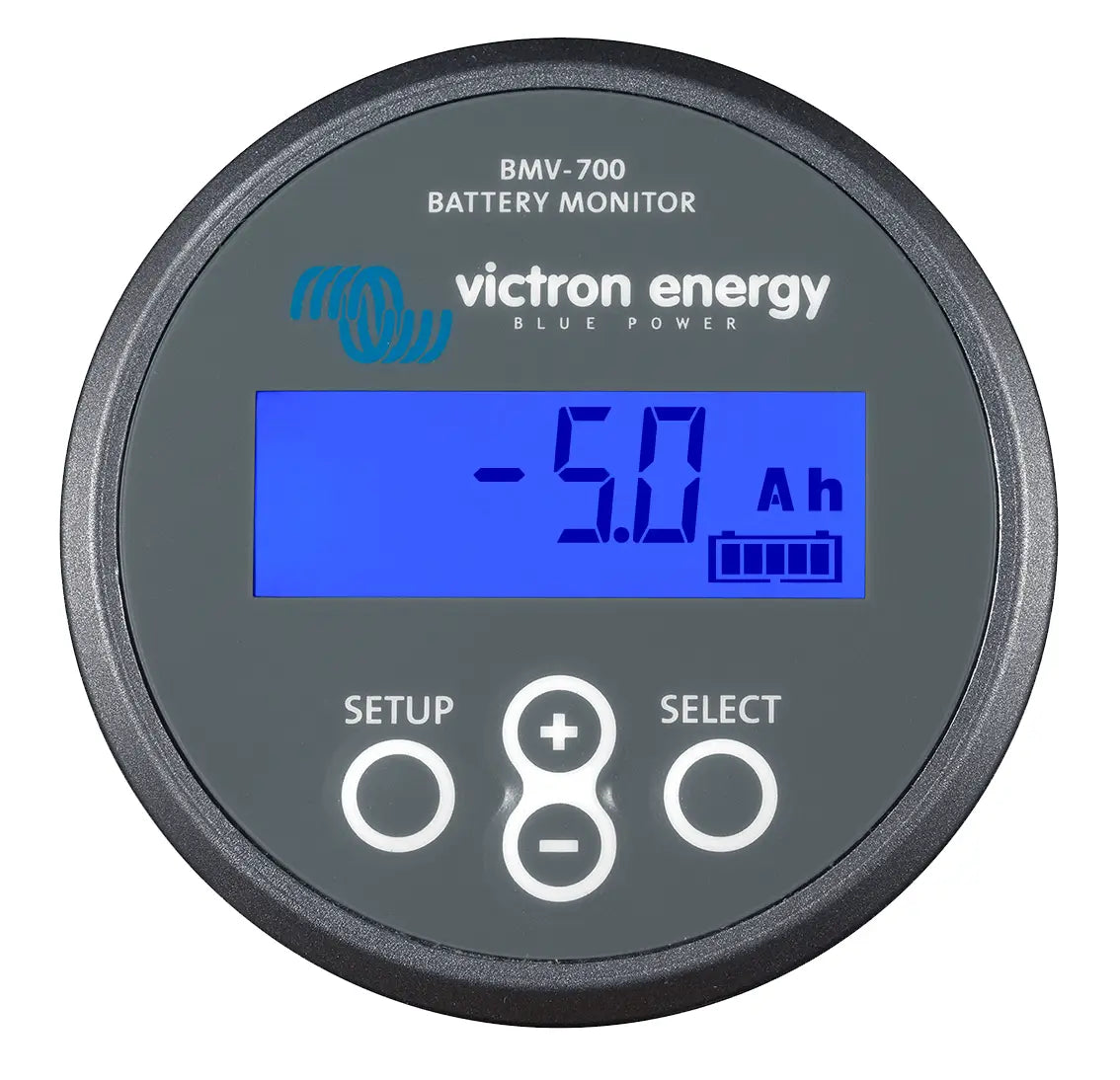

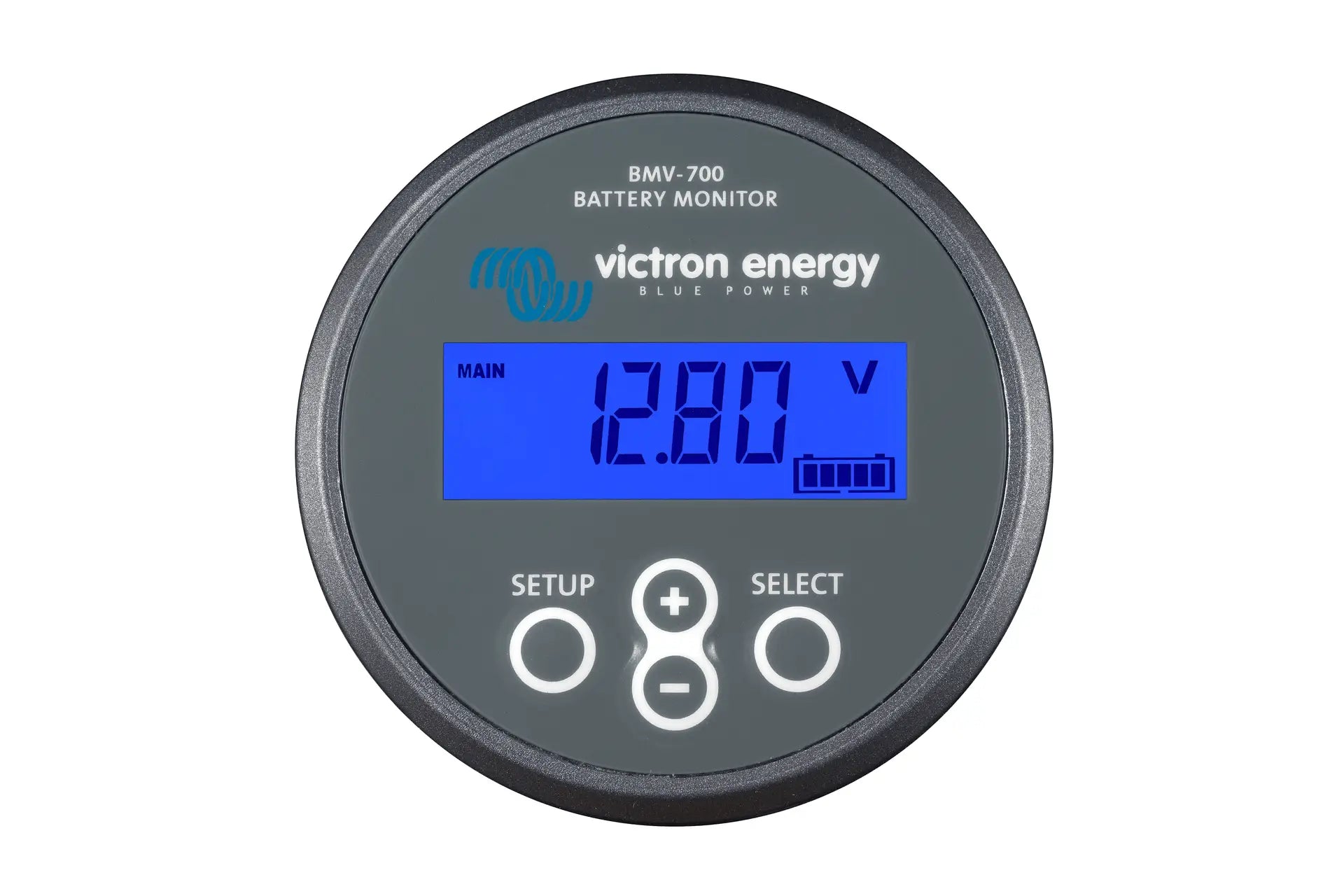

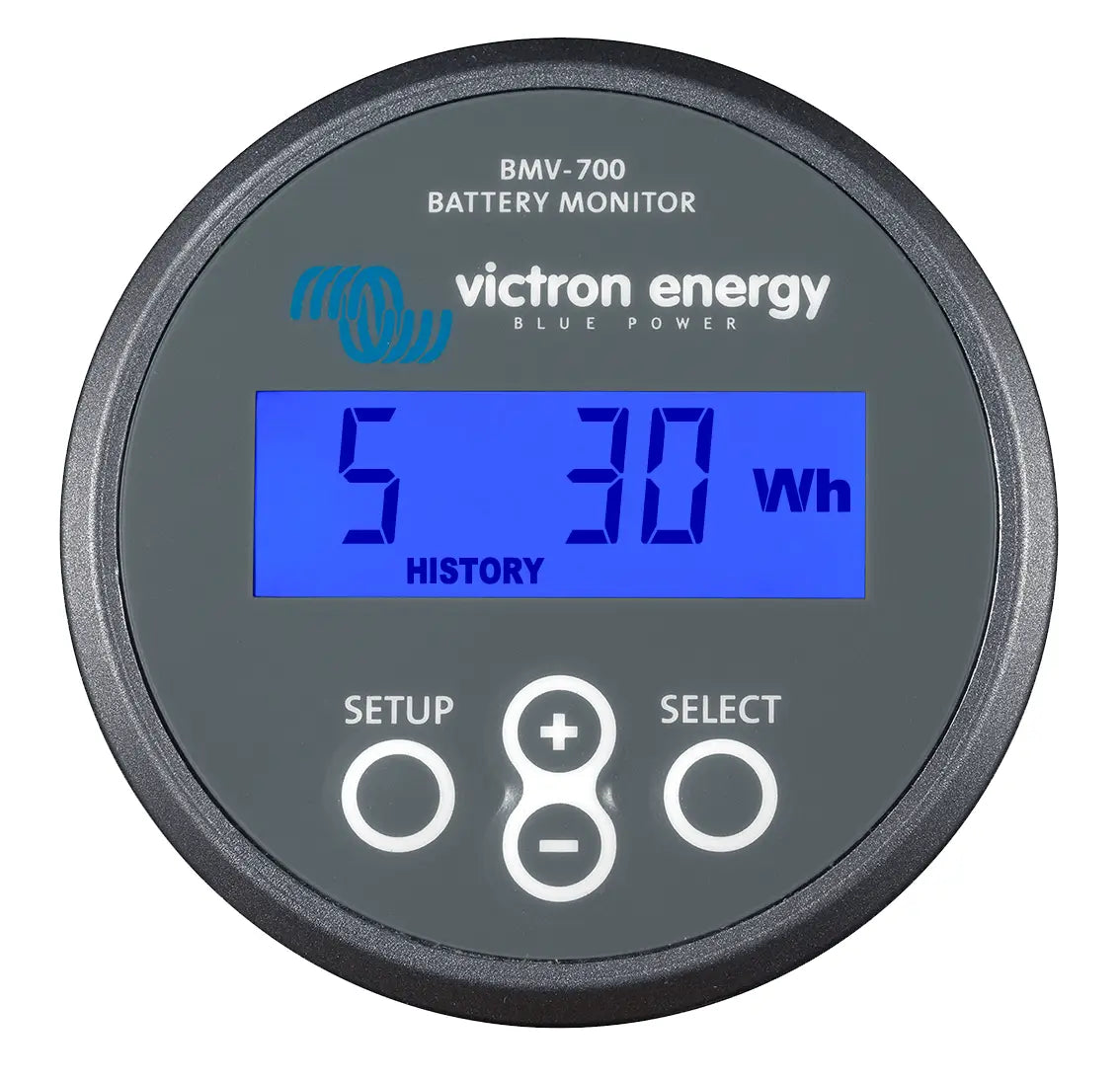

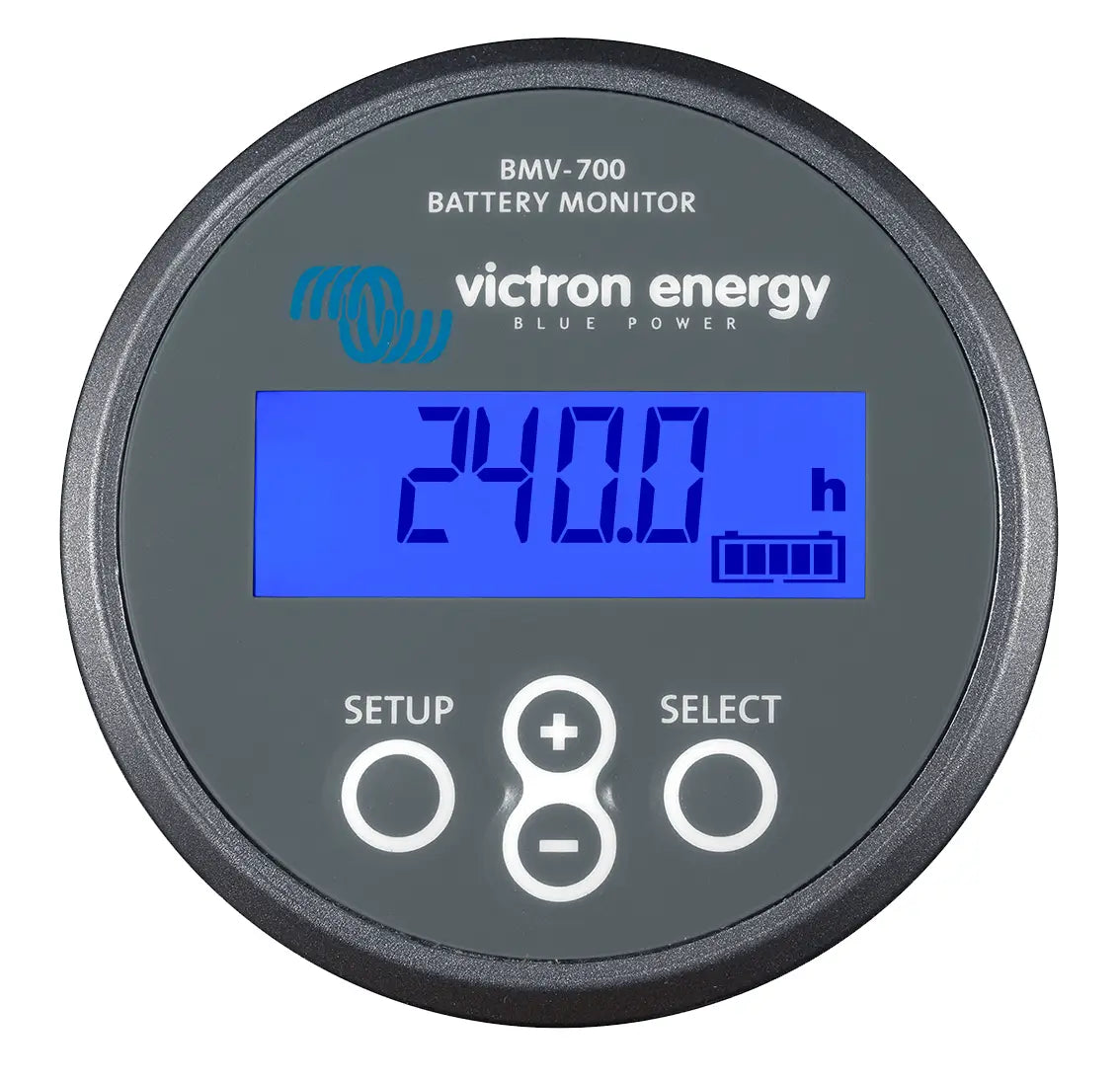

Victron Battery Monitor BMV-700

The Victron Energy BMV-700 is a high-precision battery monitor designed to provide accurate insights into the performance and health of your battery system. It's particularly well-suited for applications like solar setups, RVs, boats, and off-grid energy systems.

🔧 Key Features

• Battery Monitoring: Measures voltage, current, ampere-hours consumed, state of charge, and time-to-go.

• Relay Function: Includes a programmable relay (60V / 1A, normally open) that can be used to disconnect non-critical loads or activate a generator when needed.

• Communication Ports: Equipped with a VE.Direct communication port for integration with other Victron devices.

• Shunt Compatibility: Comes with a 500A shunt, but can be used with larger shunts up to 9999A for higher current systems.

• Operating Temperature: Functions within a wide temperature range of -40°C to +50°C.

• Power Consumption: Low current draw of less than 4mA with the backlight off.

• Battery Capacity Range: Supports battery capacities from 1 to 9999 Ah.

📱 VictronConnect App Integration

The BMV-700 is compatible with the VictronConnect app, allowing for easy configuration and monitoring. You can connect to the monitor via Bluetooth using the optional VE.Direct Bluetooth Smart dongle, USB using the VE.Direct to USB interface, or remotely via a GX device and the VRM portal. The app is available for Android, iOS, macOS, and Windows platforms.

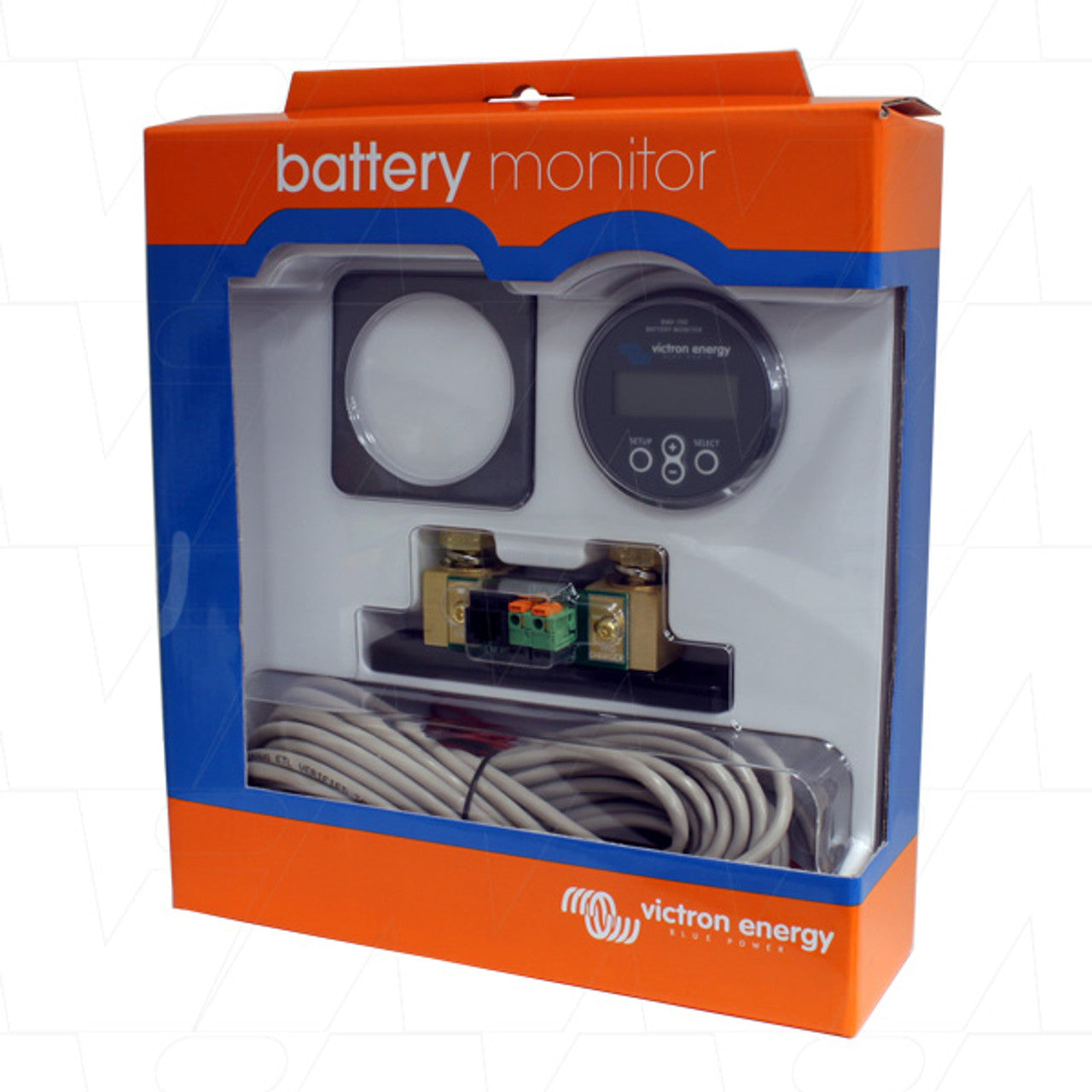

📦 Included in the Box

• BMV-700 Display Unit

• 500A Shunt with Quick Connect PCB

• 10m RJ12 Cable

• 2m Battery Cable with Fuse

• Mounting Hardware

This comprehensive kit ensures a straightforward installation process.

💡 Applications

The BMV-700 is ideal for systems where accurate battery monitoring is crucial, such as:

• Solar Power Systems

• Recreational Vehicles (RVs)

• Marine Applications

• Off-Grid Energy Solutions

Its versatility and precision make it a valuable tool for anyone looking to optimize battery performance and longevity.
