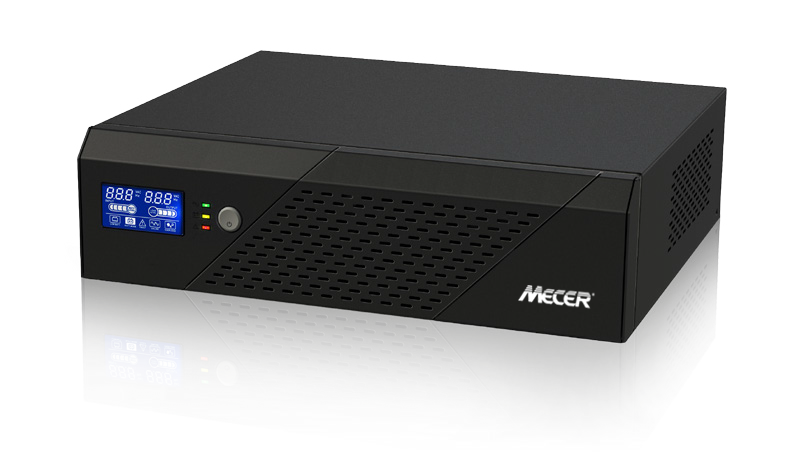

Mecer 1200VA, 720W, 12V DC-AC Inverter with LCD Display (Without Battery)

Features
Simulated sinewave inverter
Wide input voltage range
12VDC available
Overload and short circuit protection
LCD display for comprehensive information

CAPACITY
1200VA/ 720W

INPUT

Voltage
230 VAC

Acceptable Voltage Range
90-280VAC

Frequency
50 Hz/60 Hz (Auto sensing)

OUTPUT
AC Voltage Regulation (Batt. Mode)
10%

Efficiency (Peak)
82%

Transfer Time
20 ms typical

Waveform (Batt. Mode)
Simulated sine wave

BATTERY & AC CHARGER
Battery Voltage
12 VDC

Floating Charge Voltage
13.7 VDC 2%

Low Battery Alarm Voltage
10.2Vdc 2%

Shutdown Voltage
9.9Vdc 2%

Overcharge Protection
15.0Vdc 2%

PROTECTION

Full Protection
Overload, short circuit and polarity reserve protection

PHYSICAL

Dimension, D X W X H (mm)
300 x 360 x 88

Net Weight (kgs)
4.6

OPERATING ENVIRONMENT

Humidity
0 to 90% Relative Humidity (Non-condensing)

Operating Temperature
0 C to 40 C

Storage Temperature
-15 C to 50 C
