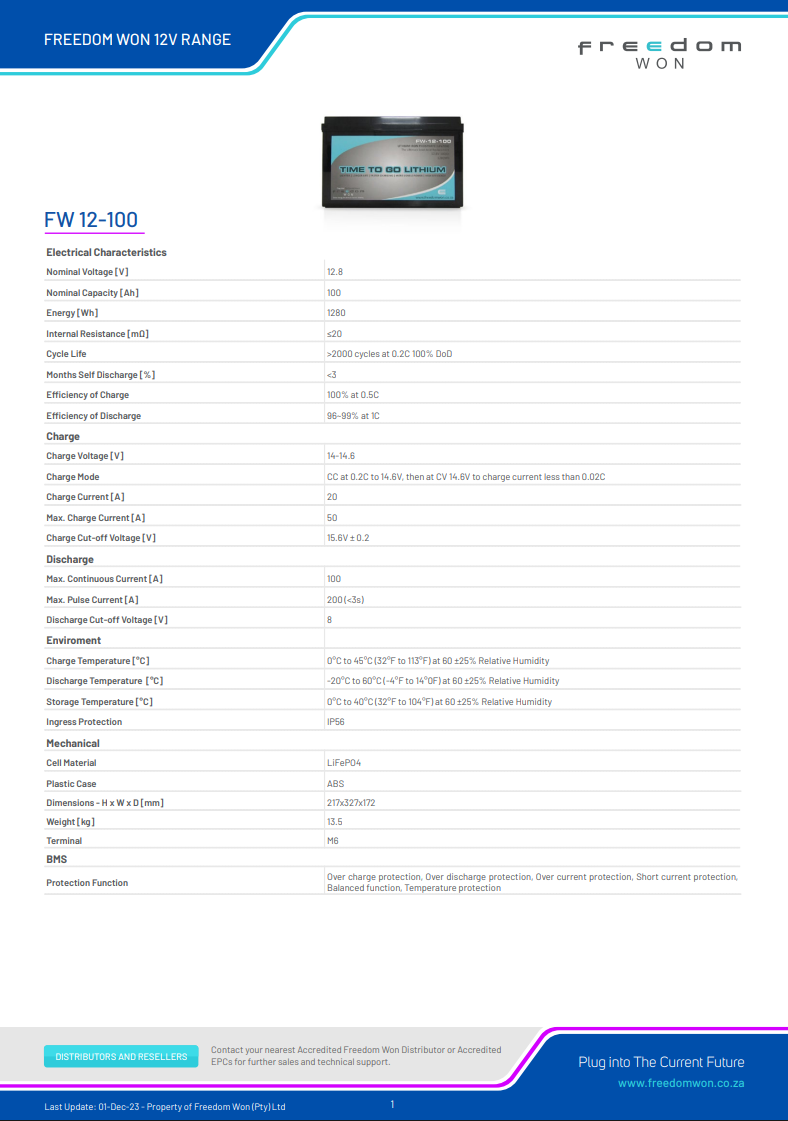

Freedom Won LiFePO4 Lithium Ion 12V - 100AH - FW 12-100
Freedom Won LiFePO4 Lithium Ion 12V - 100AH - FW 12-100
Couldn't load pickup availability
Electrical Characteristics
Nominal Voltage [V] 12.8
Nominal Capacity [Ah] 100
Energy [Wh] 1280
Internal Resistance [mΩ] ≤20
Cycle Life >2000 cycles at 0.2C 100% DoD
Months Self Discharge [%] <3
Efficiency of Charge 100% at 0.5C
Efficiency of Discharge 96~99% at 1C
Charge Charge Voltage [V] 14-14.6
Charge Mode CC at 0.2C to 14.6V, then at CV 14.6V to charge current less than 0.02C
Charge Current [A] 20
Max. Charge Current [A] 50
Charge Cut-off Voltage [V] 15.6V+/-0.2
Discharge Max. Continuous Current [A] 100
Max. Pulse Current [A] 200 (<3s)
Discharge Cut-off Voltage [V] 8
Environment
Charge Temperature [°C]
0°C to 45°C (32°F to 113°F) at 60 ±25% Relative Humidity
Discharge Temperature [°C]
-20°C to 60°C (-4°F to 14°0F) at 60 ±25% Relative Humidity
Storage Temperature [°C]
0°C to 40°C (32°F to 104°F) at 60 ±25% Relative Humidity
Ingress Protection
IP56
Mechanical
Cell Material
Plastic Case
ABS
Dimensions – H x W x D [mm]
217x327x172
Weight [kg]
13.5
Terminal
M6
BMS
Protection Function
Over charge protection, Over discharge protection, Over current protection, Short current protection, Balanced function, Temperature protection
